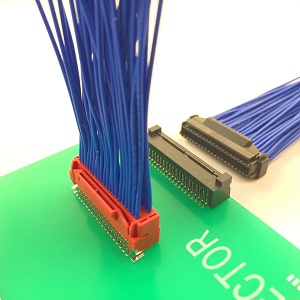

GERD connector

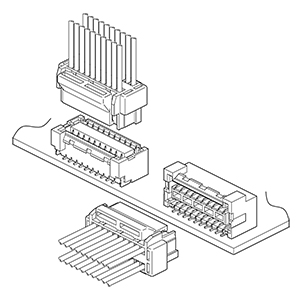

Para cumplir con el diseño de placas de circuito impreso de alta densidad, este conector GERD está diseñado como un conector de doble fila con un paso de 1,25 mm. Incluye una gama completa de 10 a 40 circuitos para entradas superiores y laterales. Su funcionamiento es excelente a pesar de su pequeño tamaño y estañado.

Perfil del producto

Series

GERD connector

Tipo

Estilo crimpado, doble fila, con dispositivo de bloqueo seguro, tipo desconectable.

Especificaciones técnicas

Pitch

1.25mm pitch

Current rating

1.5A (AWG#26)
1.0A (AWG#28)
0.8A (AWG#30)

Voltage rating

50V

Temperature range

–25 a +85 °C

Referencias

Referencias GERD Series
  • SGEZD-002T-C0.2A
  • GERDR-10V-S
  • GERDR-12V-S
  • GERDR-14V-S
  • GERDR-16V-S
  • GERDR-18V-S
  • GERDR-20V-S
  • GERDR-22V-S
  • GERDR-24V-S
  • GERDR-26V-S
  • GERDR-28V-S
  • GERDR-30V-S
  • GERDR-32V-S
  • GERDR-34V-S
  • GERDR-36V-S
  • GERDR-38V-S
  • GERDR-40V-S
  • BM10B-GERDS-TF
  • BM12B-GERDS-TF
  • BM14B-GERDS-TF
  • BM16B-GERDS-TF
  • BM18B-GERDS-TF
  • BM20B-GERDS-TF
  • BM22B-GERDS-TF
  • BM24B-GERDS-TF
  • BM26B-GERDS-TF
  • BM28B-GERDS-TF
  • BM30B-GERDS-TF
  • BM32B-GERDS-TF
  • BM34B-GERDS-TF
  • BM36B-GERDS-TF
  • BM38B-GERDS-TF
  • BM40B-GERDS-TF
  • SM10B-GERDS-TF
  • SM12B-GERDS-TF
  • SM14B-GERDS-TF
  • SM16B-GERDS-TF
  • SM18B-GERDS-TF
  • SM20B-GERDS-TF
  • SM22B-GERDS-TF
  • SM24B-GERDS-TF
  • SM26B-GERDS-TF
  • SM28B-GERDS-TF
  • SM30B-GERDS-TF
  • SM32B-GERDS-TF
  • SM34B-GERDS-TF
  • SM36B-GERDS-TF
  • SM38B-GERDS-TF
  • SM40B-GERDS-TF
