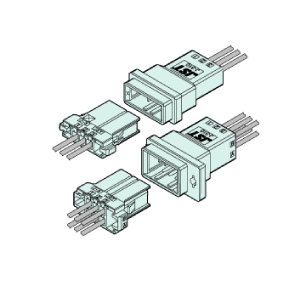

JFA connector J300 series (W to W 3.81mm pitch)

Disponible tanto con conexión cable a placa como cable a cable, el conector JFA es aplicable a una amplia gama de aplicaciones, por ejemplo, desde circuitos de señal hasta circuitos de salida.
*Construcción de doble resorte
*Para lograr una fiabilidad de contacto superior, el contacto hembra.

Perfil del producto

Series

JFA connector J300 series (W to W 3.81mm pitch)

Tipo

Tipo crimpado

Especificaciones técnicas

Pitch

3.81mm pitch

Current rating

15A (Single circuit/AWG#14)

Voltage rating

250V

Temperature range

–55 a +105 °C

Referencias

Referencias J300 Series
  • B03B-J3DK-GGXR
  • B03B-J3DK-GGXR-A
  • B03B-J3DK-GGXR-B
  • B03B-J3DK-GGXR-C
  • B03B-J3DK-GGYR
  • B03B-J3DK-GGYR-A
  • B03B-J3DK-GGYR-B
  • B03B-J3DK-GGYR-C
  • B03B-J3DK-TXR
  • B03B-J3DK-TXR-A
  • B03B-J3DK-TXR-B
  • B03B-J3DK-TXR-C
  • B03B-J3DK-TYR
  • B03B-J3DK-TYR-A
  • B03B-J3DK-TYR-B
  • B03B-J3DK-TYR-C
  • S03B-J3DK-GGXR
  • S03B-J3DK-GGYR
  • S03B-J3DK-TXR
  • S03B-J3DK-TYR
  • B05B-J3DK-GGXR
  • B05B-J3DK-GGXR-A
  • B05B-J3DK-GGXR-B
  • B05B-J3DK-GGXR-C
  • B05B-J3DK-GGYR
  • B05B-J3DK-GGYR-A
  • B05B-J3DK-GGYR-B
  • B05B-J3DK-GGYR-C
  • B05B-J3DK-TXR
  • B05B-J3DK-TYR
  • S05B-J3DK-GGXR
  • S05B-J3DK-GGYR
  • S05B-J3DK-TXR
  • S05B-J3DK-TYR
  • B07B-J3DK-GGXR
  • B07B-J3DK-GGYR
  • B07B-J3DK-TXR
  • B07B-J3DK-TYR
  • S07B-J3DK-GGXR
  • S07B-J3DK-GGYR
  • S07B-J3DK-TXR
  • S07B-J3DK-TYR
  • B09B-J3DK-GGXR
  • B09B-J3DK-GGYR
  • B09B-J3DK-TXR
  • B09B-J3DK-TYR
  • S09B-J3DK-GGXR
  • S09B-J3DK-GGYR
  • S09B-J3DK-TXR
  • S09B-J3DK-TYR
  • B11B-J3DK-GGXR
  • B11B-J3DK-GGYR
  • B11B-J3DK-TXR
  • B11B-J3DK-TYR
  • S11B-J3DK-GGXR
  • S11B-J3DK-GGYR
  • S11B-J3DK-TXR
  • S11B-J3DK-TYR
  • B13B-J3DK-GGXR
  • B13B-J3DK-GGYR
  • B13B-J3DK-TXR
  • B13B-J3DK-TYR
  • S13B-J3DK-GGXR
  • S13B-J3DK-GGYR
  • S13B-J3DK-TXR
  • S13B-J3DK-TYR
  • B15B-J3DK-GGXR
  • B15B-J3DK-GGYR
  • B15B-J3DK-TXR
  • B15B-J3DK-TYR
  • S15B-J3DK-GGXR
  • S15B-J3DK-GGYR
  • S15B-J3DK-TXR
  • S15B-J3DK-TYR
